Assembled with high-efficiency PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
E-Wealthtechpower
E-Wealthtechpower
HET-445M72AH
445W
24.5kg
2115*1052*35mm
25years
TUV/CE/CEC/FCC/CQC/ISO/ROHS
T/T, L/C, Paypal, Western Union
Products Name:
445W photovoltaic solar module Mono 9BB Half Cell Solar Power Panel

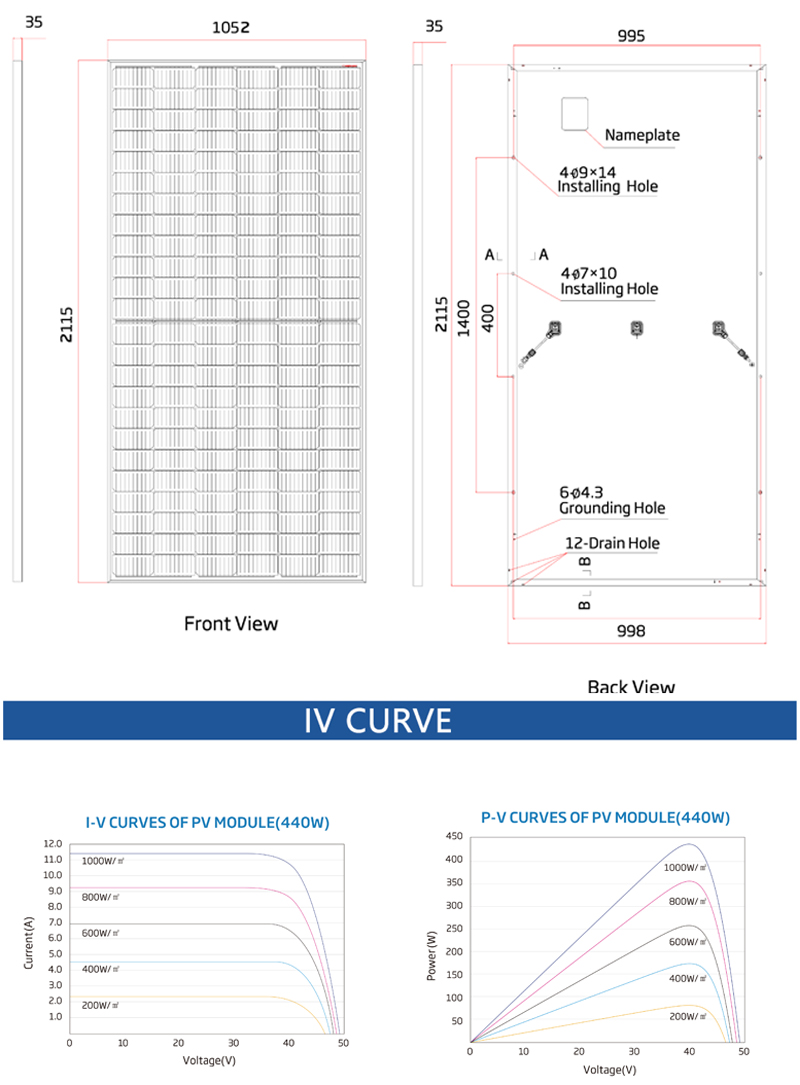

Electrical Characteristics (STC)
| Module Type | HET-435M72HA | HET-440M72HA | HET-445M72HA | HET-450M72HA |
| Maximum Power (Pmax) | 435W | 440W | 445W | 450W |
| Open-circuit Voltage (Voc) | 49.0V | 49.2V | 49.4V | 49.6V |
| Short-circuit Current (Isc) | 11.31A | 11.39A | 11.46A | 11.53A |
| Maximum Power Voltage (Vmp) | 40.5V | 40.7V | 40.8V | 41.0V |
| Maximum Power Current (Imp) | 10.74A | 10.82A | 10.90A | 10.98A |
| Module Efficiency(%) | 19.6% | 19.8% | 20.0% | 20.2% |
| Power Tolerance | 0~+5W | |||
| Standard Test Environment | Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5 | |||
Package details
| Container | 20GP | 40GP | 40HC |
| Pcs/pallet | 30 | 30 | 30 |
| Pallet/container | 5 | 11 | 22 |
| Pcs/container | 150 | 330 | 660 |
To parterners:
We are Chinese solar panel factory specialized in solar panel manufacturing since 2009. Now our 60cells, 72cells, 120half cells, 144half cells, 132half cells, 156half cells ,9BB half cells standard solar panel
for solar power plant application are on a high promotion with very good price: Production capacity: 500MW annual to ensure fast delivery.
Our advatages:

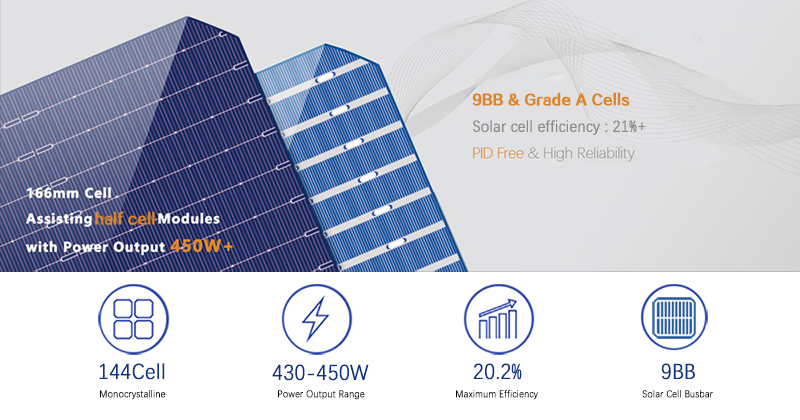

1.Higher Module Efficiency. 5-10W extra power due to the half-cell system 2.More energy yield compared to standard solar panels 3.Lower operating temperature & elimination of hot spots Better shading tolerance.
Foldable Solar Panel with Charge Controller is the key component to a system when going solar Off -Grid system. These panels are relatively compact and are a breeze to set up. Whether you are going camping in the mountains or taking a trip to the beach, this panel can be a great start to your off-grid system! This panel has several uses including marine, dry camp, RVS and other off-grid applications.
E-Wealthtech 40Watt portable generator is a perfect power source for your indoor and outdoor activities such as camping, hunting, fishing, traveling . It can also provide emergency backup power source during power outages, hurricane, storm.
E-Wealthtech 100W Monocrystalline Solar Panel, Up To 21.5%-23.5% Conversion Efficiency, Stay Charged With The Power From The Sun! Lightweight, foldable and with an easy-carry handle making it more portable and ideal for outdoors and any unexpected power outages.
160W Mono Foldable Solar Panel with Charge Controller is the key component to a system when going solar Off -Grid system. These panels are relatively compact and are a breeze to set up. Whether you are going camping in the mountains or taking a trip to the beach, this panel can be a great start to your off-grid system! This panel has several uses including marine, dry camp, RVS and other off-grid applications.
The manufacturer E-Wealthtech Solar presents a flexible panel of 100W and 12V, made of monocrystalline silicon that incorporates a remarkable technology in the industry. This technology is a polymer called ETFE, which has multiple advantages that allow the panel to have greater resistance to heat, corrosion and UV rays.
